Festo’s new PCRP filter regulator for harsh environments

August 20, 2019

The UV-resistant unit functions outdoors from -60°C to +80°C and is also built for potentially explosive zones.

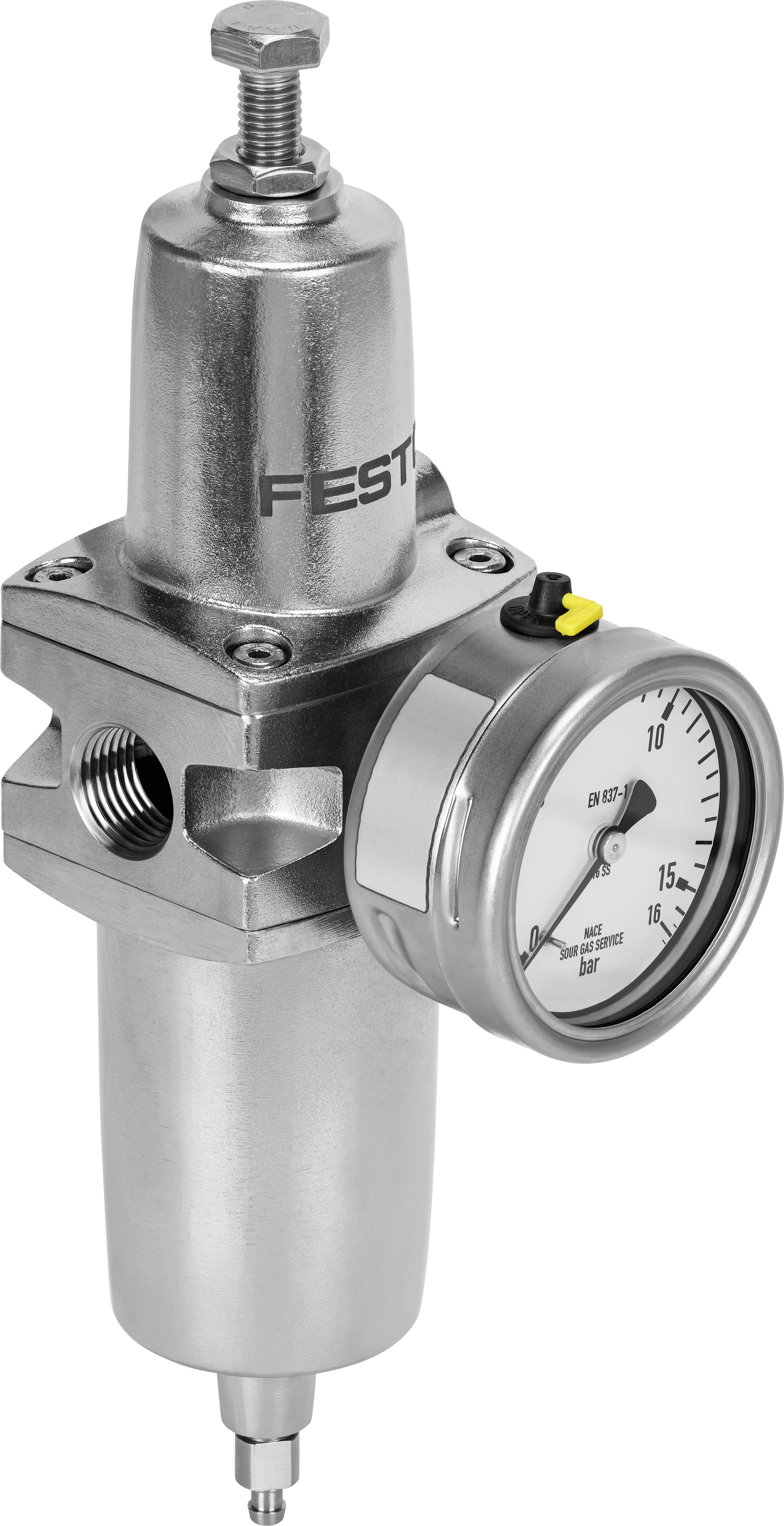

regulatorFesto’s PCRP filter regulator delivers high flow rates and reliable compressed air pressure control in a range of harsh environments.

Its housing and interior are made entirely of premium stainless steel to ensure high corrosion resistance. The UV-resistant PCRP functions reliably outdoors and at temperatures ranging from -60°C to +80°C.

It is also built rugged for potentially explosive zones 1, 2, 21 and 22.

The PCRP’s stainless steel 316L housing meets all material requirements to NACE MR0175, guaranteeing a high level of corrosive resistance even in hydrogen sulphide environments such as those in the petrochemical industry.

The PCRP combines filter and pressure regulator functions in a single design, with a flow rate up to 4,115 l/m and a grade of filtration 5 or 40 µm, depending on which ISO 8573 air quality compliance level is required.

The unit’s patented seal technology protects against back flow and ensures reliable exhausting without the need for special accessories.

The PCRP has two pressure gauge connections for mounting flexibility. It can be installed in-line or using the available simple mounting bracket. Once it’s in place, there is just the pressure gauge (Festo’s PAGN) to be screwed in.

Pneumatic connections are either ¼” or ½” in G or NPT.
